PRODUCT FEATURES:
- M8 Stud Primary Bar
- 1-30A Primary Current
- 5A Secondary Current
- Accuracy Class 1 or 3
- Busbar or DIN Rail Mounted
- Single Phase

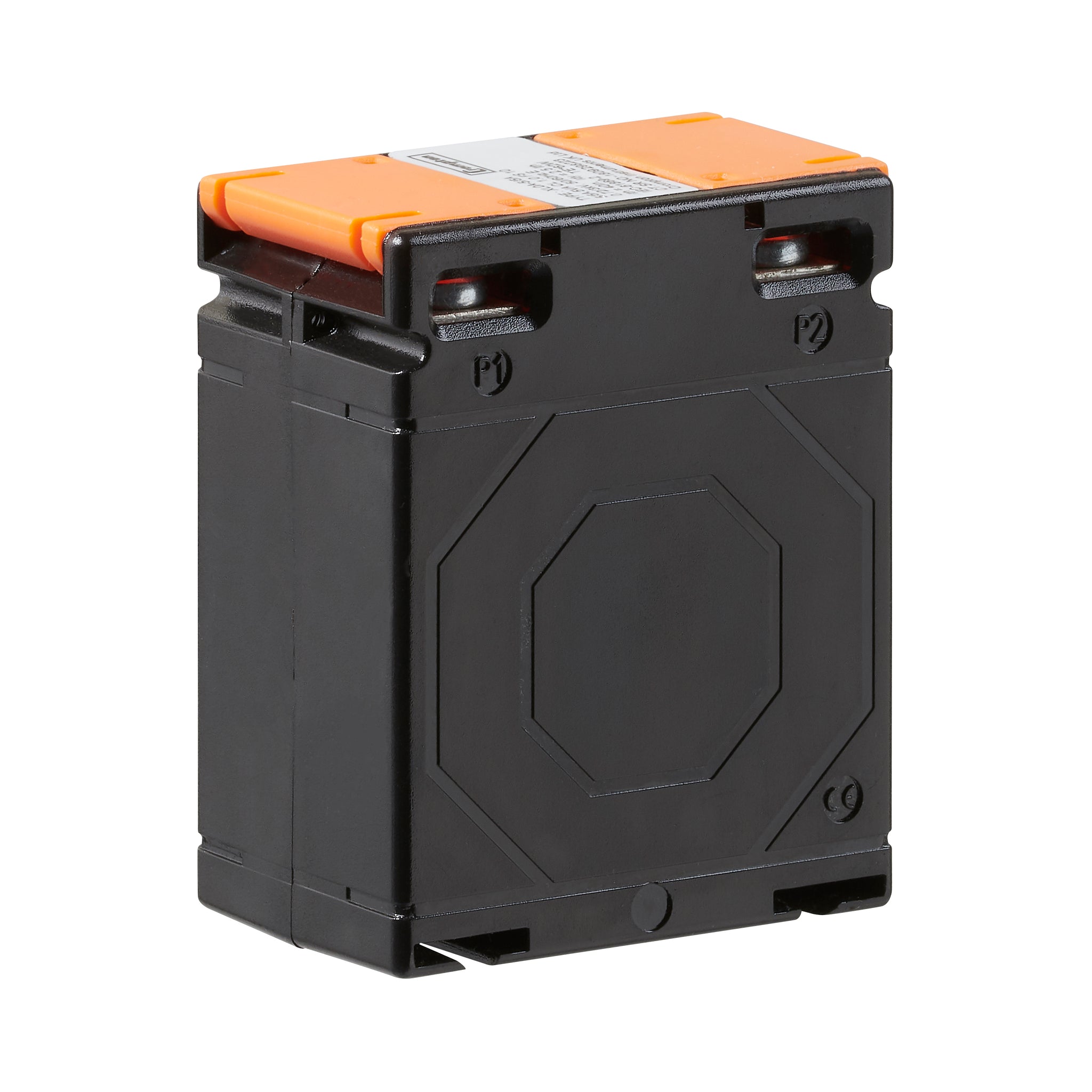

The XL0A Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual XL0A CTs for Single Phase applications, you can also use three of these current transformers for Three Phase applications. The XL0A is ideal for applications such as Distribution systems, Generator sets, Control Panels, and Switchgear or any application with a low current.
