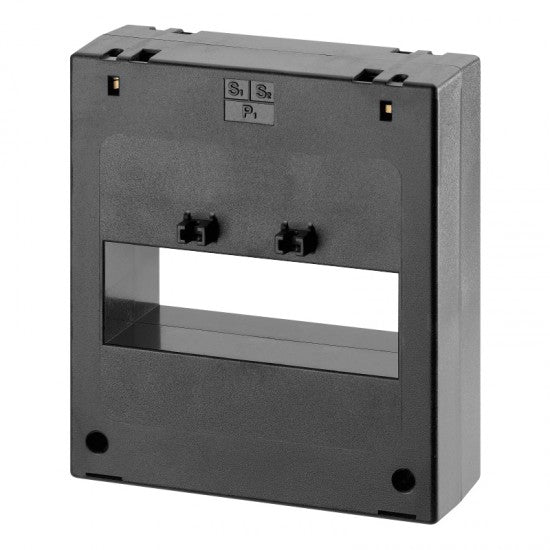

MB5Z Current Transformer

The MB5Z Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual MB5Z CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 35mm² Cable, as well as 104mm x 35mm Busbar. The MB5Z is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

• 35mm² Aperture
• 104mm x 35mm Busbar Aperture
• 1600-3000A Primary Current
• 5A Secondary Current
• Secondary M4 Screw Terminals
• Accuracy Class 0.5, 1 or 3
• Busbar or DIN Rail Mounted
