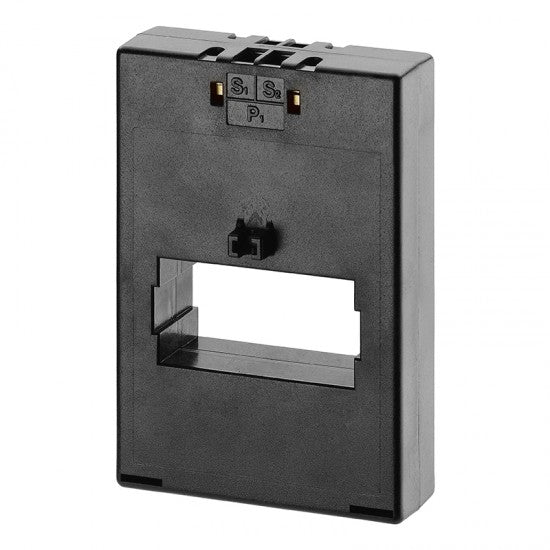

M93R Current Transformer

The M93R Range of Solid Core Current Transformers from Crompton Instruments work in conjunction with any 5A CT Operated Electricity Meters. You can use individual M93R CTs for Single Phase applications, you can also use several of these current transformers for Three Phase applications. The Aperture on this model accommodates 60mm x 30mm Busbar. The M93R is ideal for applications such as Distribution systems, Generator sets, Control Panels and Switchgear.

Technical Specification

• 64mm x 12.6mm Busbar Aperture
• 60mm x 30mm Busbar Aperture
• 800-2000A Primary Current
• 5A Secondary Current
• Secondary M4 Screw Terminals
• Accuracy Class 0.5, 1 or 3
• Busbar or DIN Rail Mounted
