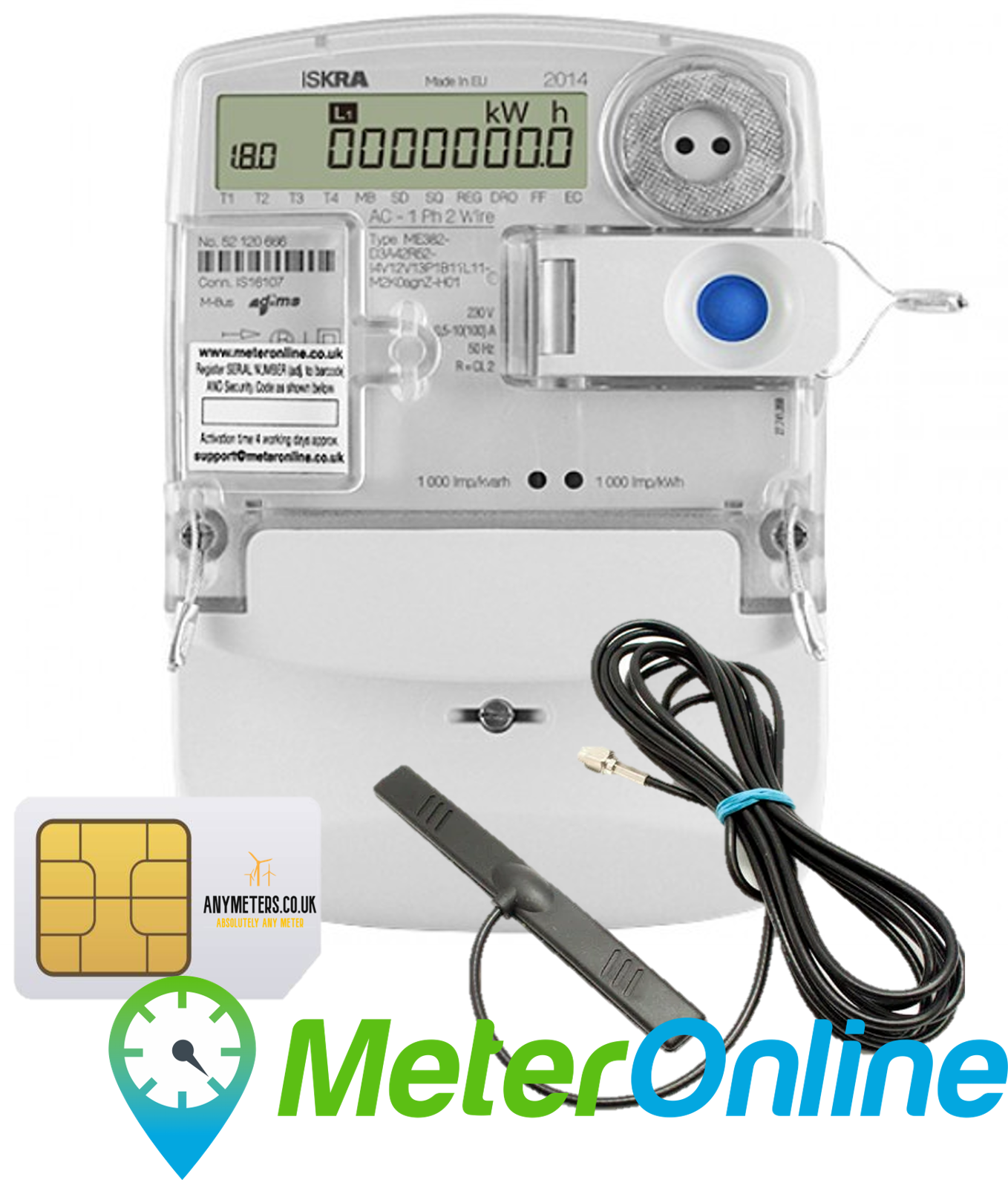

The Iskra ME382 is targeted at deregulated energy markets and enables provision of an AMR system. It is a single phase meter designed for use in a residential application. The meter incorporates a fully integrated GSM/GPRS modem that can be exchanged with integrated RS485 communications interface for block installations. The Iskra ME382 meter is approved according to IEC 62052-11, IEC 62053-21, IS0 9001, EN 50470-1, EN 50470-3.
To read these smart meters remotely you will need MeterOnline unless you have your own AMR system, You can register your MeterOnline Meter Here
Technical Specification
- Single Phase Network
- 100A Direct Connected
- OFGEM Approved
- Import/Export Energy
- Tariff control input
- Small size modern design
- GSM/GPRS Modem
- Cost Effective
- Accuracy class: 2 or 1
- Voltage range: 1.15 Un
- Max. current: 85A or 100A
- Reference voltage: 230V
- Reference frequency: 50/60Hz
- Operating temp. range: -25 to+60° C
- Extended temp. range:-40 to +70° C
- Storage temperature: -40 to+85° C
- Self-consumption current 0.5VA
- Self-consumption Voltage 2W / 10VA
- Short-circuit current: 30 Imax
Click Here For Product Datasheet
