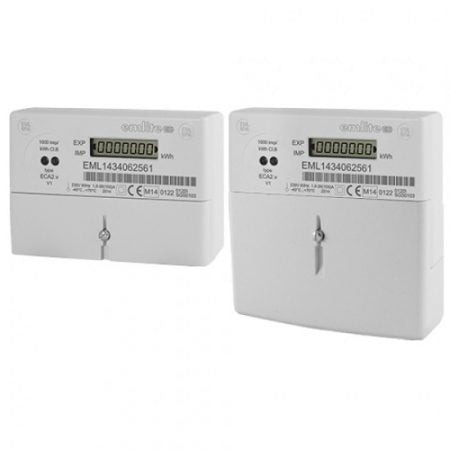

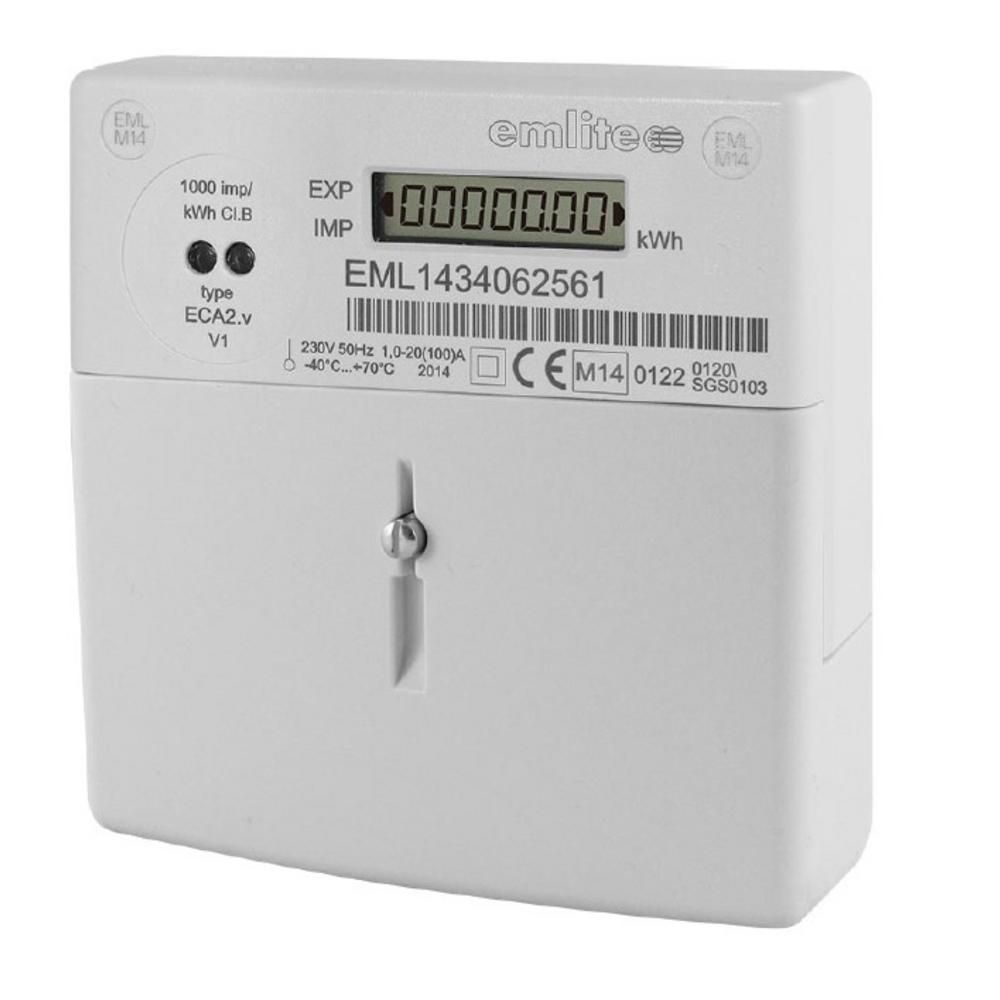

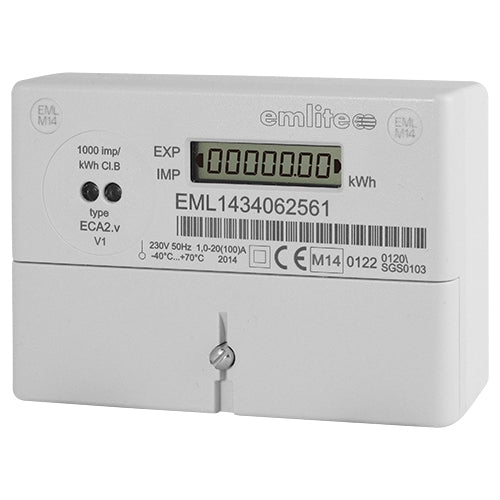

Emlite ECA2 (Dragonfly) is a compact and robust single-phase kWh meter.
This Single Phase Check Meter comes in both Non Pulse & Pulse Output Variations as well as an import & export and NET version.
Technical Specification- Nominal Voltage Un 220-240V, 120V
- Single Phase Network
- 100A Direct Connected
- Voltage Range 80-115%Un
- Voltage Withstand 415V Continuous
- Nominal Frequency 50/60Hz
- Pulsed output 1 imp per Wh (1000 per kWh)
- Frequency Variation +/- 2%
- Direct Connection Ib 5, 10, 15, 20A
- Imax 40, 60, 80, 100A
- Starting Current IEC 0.004Ib
- Max Measuring Range 20mA up to 100A
-
Measuring Accuracy IEC 62053-21 Class 1 or 2
-
IEC 62053-23 Class 2 or 3
-
Max Measuring Range 20mA up to 100A
- Approvals Quality Manufactured to ISO 9001:1994
- Reference Standards IEC 62052-11, IEC 62053-21, IEC 62053-23
