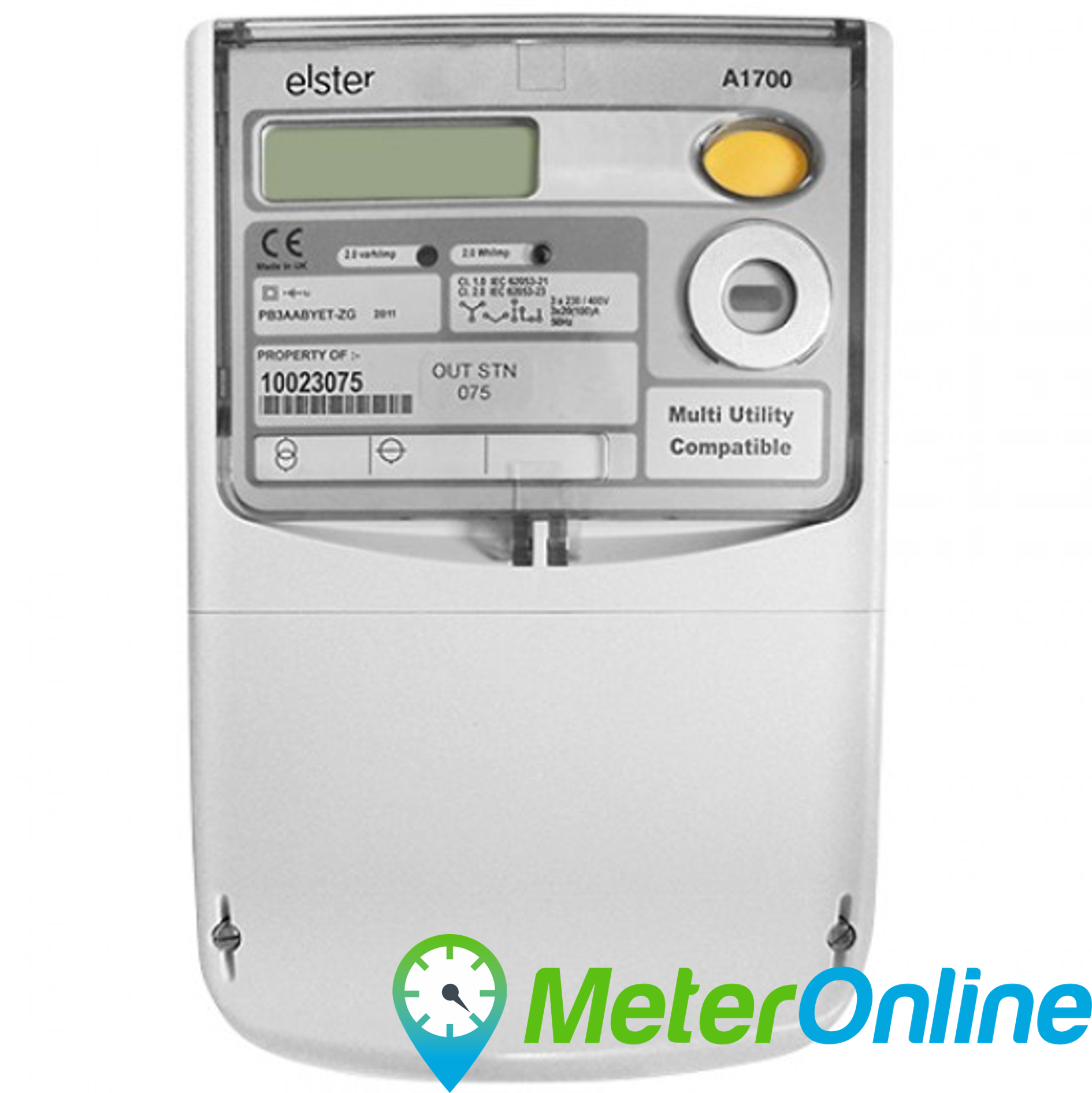

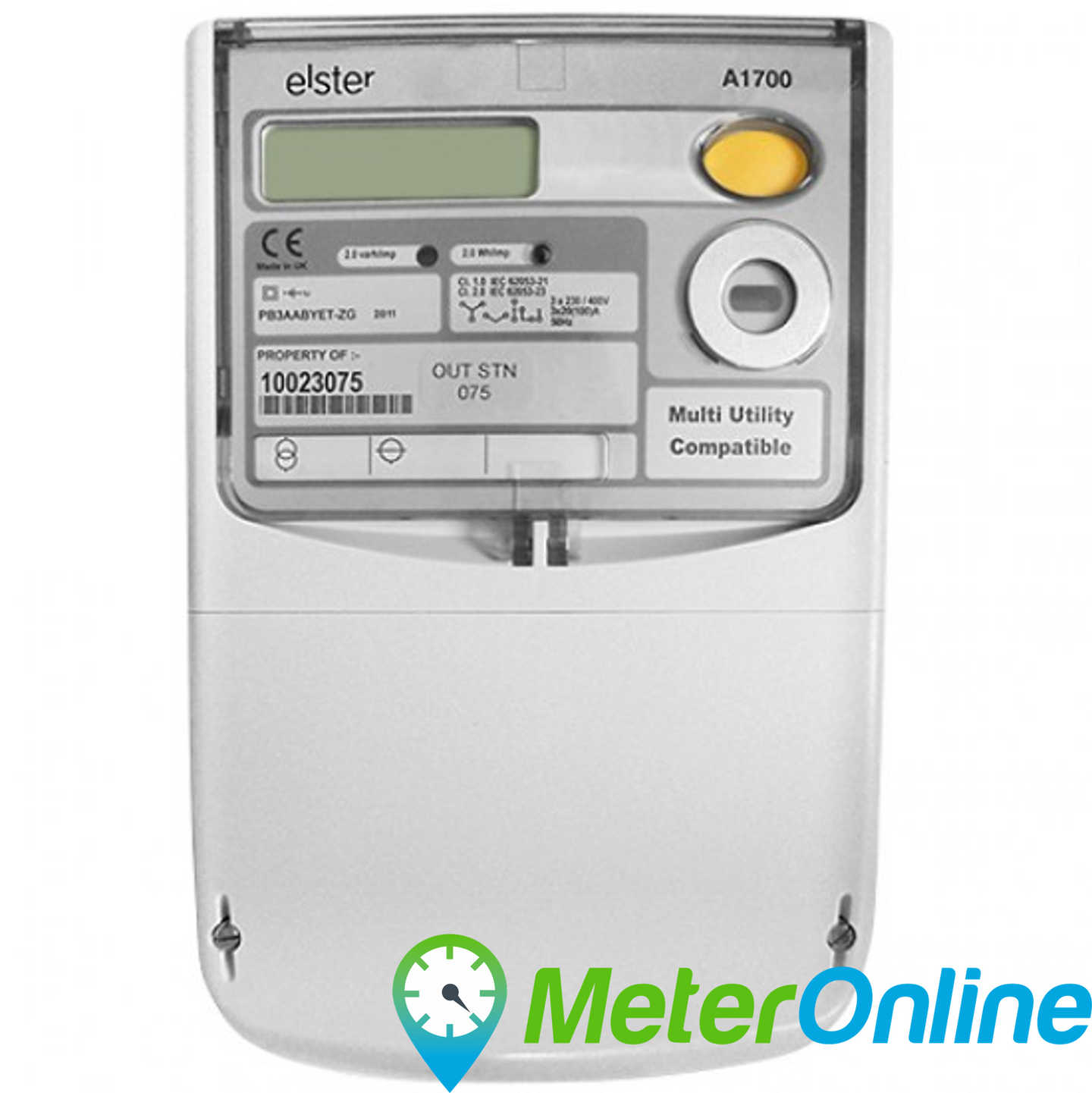

Elster A1700 DC Three Phase Power Analyser ( MeterOnline Ready )

The Elster A1700 comes in 2 variations both Direct Connected or Current Transformer Operated, This model is a Direct Connected 100amp Variant.

The Elster A1700 is of modular design, allowing one module for input or output and one module communications to be fitted underneath the terminal cover.

This Meter can be programmed or read either locally or remotely, Local communications is established via an optical communications port, using a PC or Hand Held Unit incorporating the IEC-62056-21

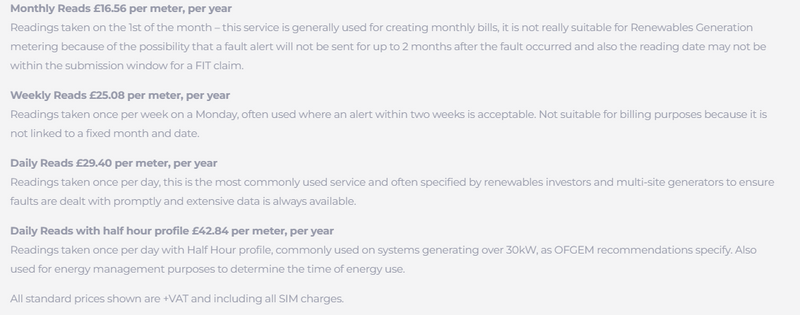

To read these smart meters remotely you will need to create an account with MeterManager to use their platform, MeterOnline. MeterManager charges can be found in the photos of this product. Alternatively, give us a call for more information / clarification.

Technical Specification

• CT & CT/VT operated
• Three phase networks
• MID Approved
• Communications via optical port or communications module
• Plug in modules for extended functionality
• Comprehensive tariff structure
• 2 line, multilingual dot matrix display
• Instantaneous instrumentation values
• 2 module slots for extended functionality
• 900 or 450 days load profile data
• Accuracy Class 0.2s, 0.5s (CT only), 1 or 2
• Concealed Utility/Reset pushbutton
• High security design

 Click Here For Product Datasheet
