Bundle: SMART-X96-1-MID & 1 x ESCT-RJ335-(insert ratio)/0.1A 3ph CT

If you require a higher CT ratio please get in touch with us on 01268 203 444

Products Features:

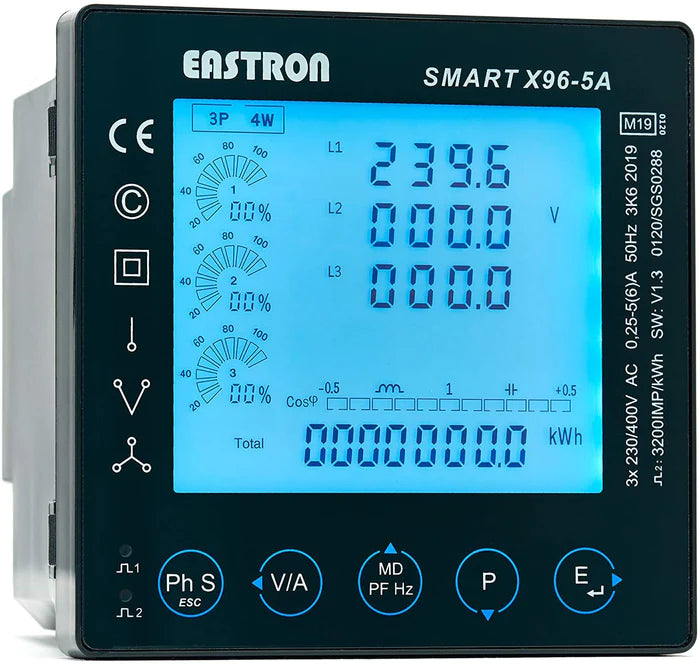

Meter Information:

• Single Phase (1P2W) MID Certified
• Three Phase (3P3W) MID Certified
• Three Phase (3P4W) MID Certified
• Class 0.5s Accuracy
• Phase Sequence Detection
• Individual Harmonics upto 63rd
• /0.1A CT Operated
• RS485 Modbus RTU
• Dual Pulse Outputs

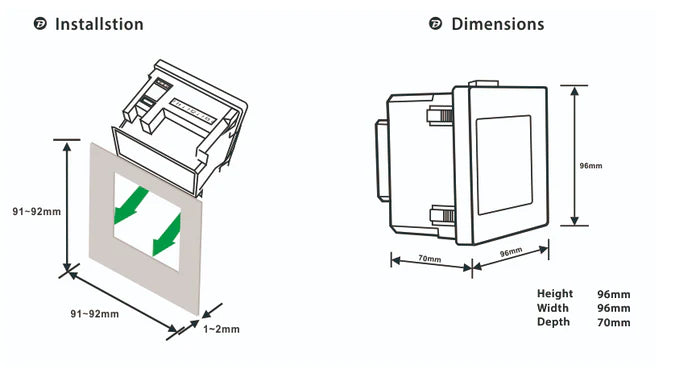

• 96mm² Panel Mounted (92mm² Cut Out)
• Digital Backlit Display
• Touch Screen Buttons

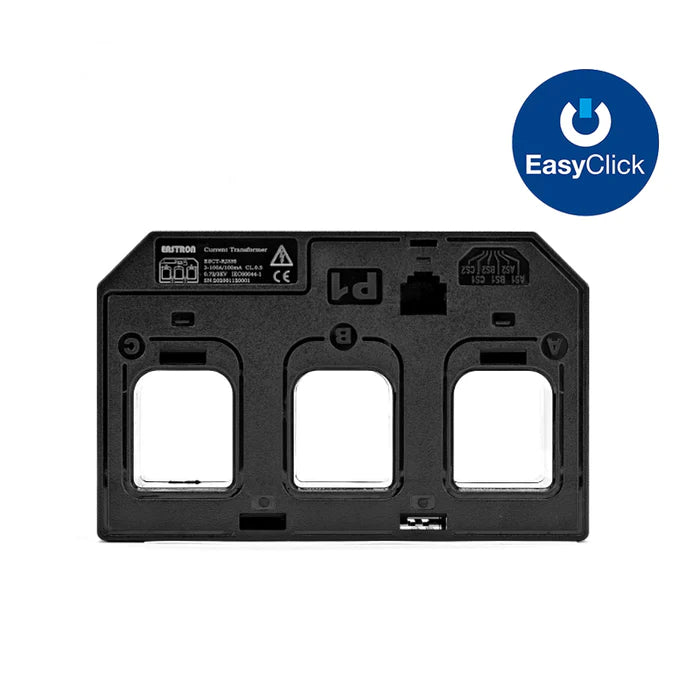

CT Information:

• 3ph
• Class 0.5 accuracy
• 60-200A Primary Current
• 0.1A Secondary Current (EasyClick)
• RJ12 connector output
• 35mm centers

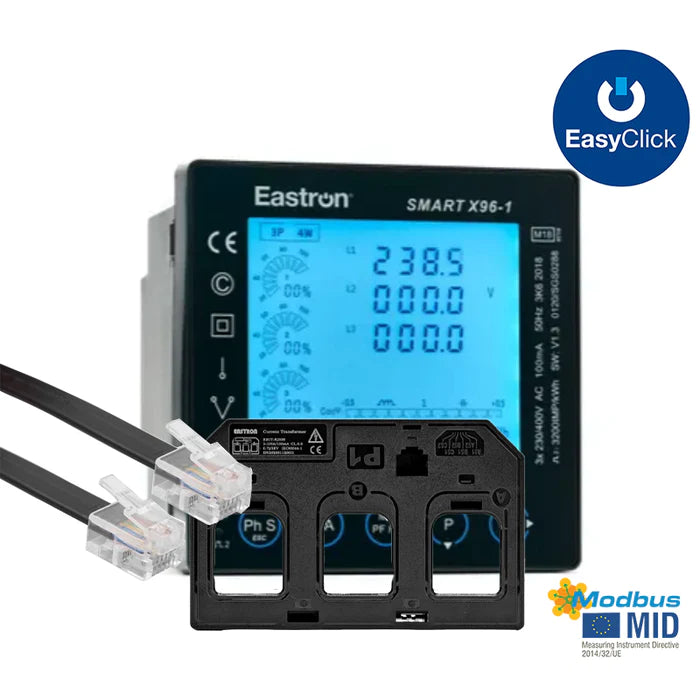

This bundle includes 1pc of Eastron SMART-X96-1-MID and 1pc of Eastron RJ335 Current Transformer

You will need to confirm what Current Transformer ratio you require before checkout, as per the options section below.
