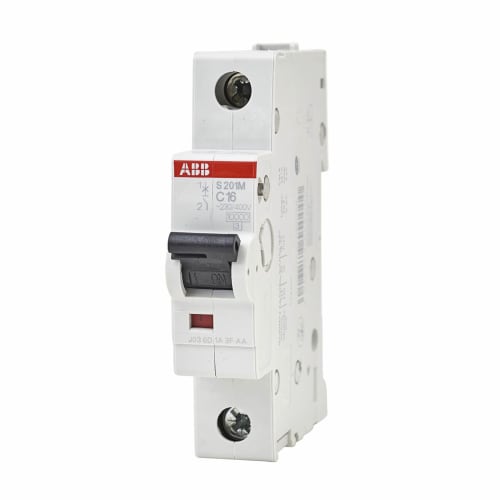

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.
Technical Specification
- Suitable for cable protection & moderate switching surges for short duration, e.g. discharge lamps
- Thermal-Magnetic operation
- Mechanical flag indicator shows ON or OFF
- Operating dolly may be locked in either the ON or OFF position
- Selected for their low electrical resistance & low propensity to weld under fault conditions
- Rated: 10kA
- Twin terminal & an increased opening for cables up to max: 35mm
- Finger-proof (IP20)
